Use of the Coordinate Axes

---

          Command:

          Menu【Node>Show Axe】           Menu【Node>Hide Axe】

---

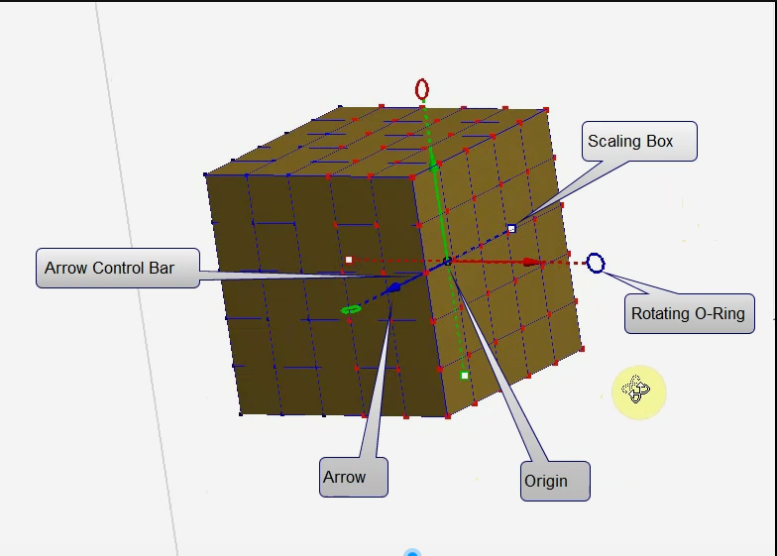

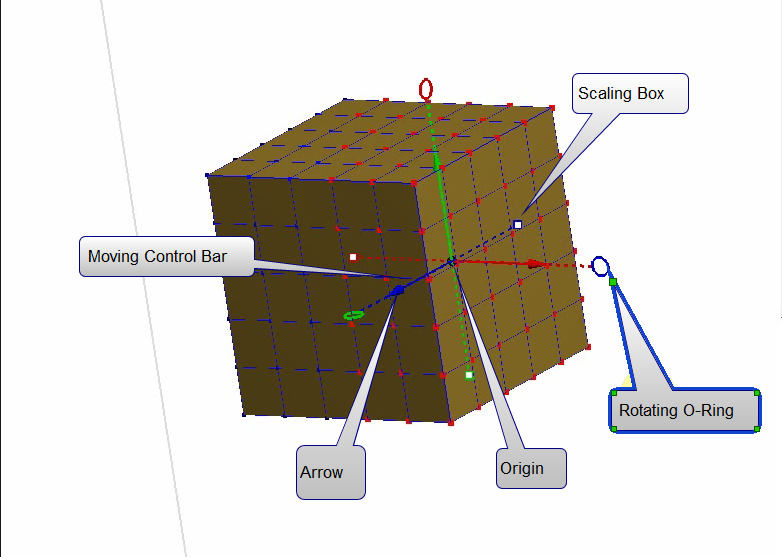

        一、The name of each part of the Coordinate Axes:



 二、The basic function of the Coordinate Axes:

1、The movement ofthe Coordinate Axes itself:

1）holding the right button of the mouse,while you can move the Coordinate Axes along the X-axe、the Y-axe or the Z-axe.

2）holding the right button of the mouse, click and drag the origin of coordinate, while you can move the Coordinate Axes in any direction.

 2、Moving the object bythe Coordinate Axes:

       Click the X-axe、the Y-axe or the Z-axe and input the figures, then press the“enter” key, you can move the Coordinate Axes along the X-axe、the Y-axe or the Z-axe precisely.



3、Scaling the object by the Coordinate Axes:

There is a white box in the rear of the X-axe、the Y-axe or the Z-axe respectively.  To Click and drag this box along the X-axe、the Y-axe or the Z-axe , you can scale in or out the selected object.



   4、Rotating the object by the Coordinate Axes:

 There is a circle in front of the arrow of the X-axe、the Y-axe or the Z-axe respectively. You can click and drag this circle to rotate the selected object.





三、Application Example：

       Example 1：





        Example2：
