Simple Slice

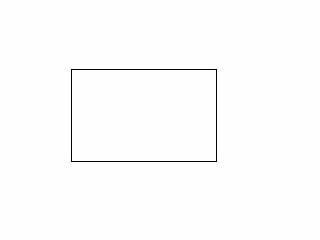

Linear Slice


      Command:

       MenuModify > Simple slice > Linear slice】                  Modification Bar



Steps:

1 Select an object.

Click Menu【Modify > Simple slice > Linear slice】

3 Draw a line on the selected object.

Note: The line must traverse the object.


Rectangular Slice


     Command:

      MenuModify > Simple slice >Rectangular slice】                    Modification Bar



Steps:

1 Select an object.

Click Menu【Modify > Simple slice > Rectangular slice】.

3 Draw a rectangle on the selected object.

Note: The sides of the rectangle should intersect with the selected object.

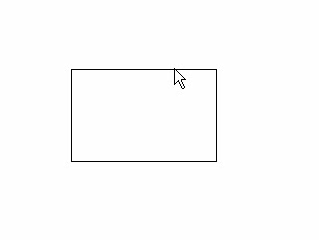

Ellipse Slice


      Command:

      MenuModify > Simple slice >Ellipse slice】                    Modification Bar



Steps:

1 Select an object.

Click Menu【Modify > Simple slice > Ellipse slice】.

3 Draw an ellipse on the selected object.

Note: The border of the ellipse must intersect with the graph.
