Trim at Curve
Command:
Menu【Surface > Trim > Trim at Curve 】
Steps:
1. ClickMenu【Surface > Trim > Trim at Curve】.
2. Move mouse into the range of surface.
3. Cursor changes into the shape of Scissor and click right button to finish operation.

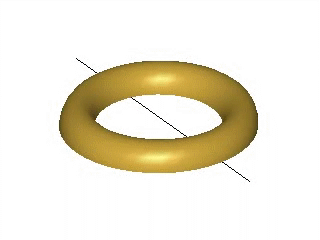

Note：”Trim at Curve ” is along with view direction. not at z axis. when view window is rotated, trim plane is changed.
