ToolPath Sequence
Toolpath sequence can be adjusted so as to improve machining process and machining quality.
Command:
Menu【ToolPath > ToolPath sequence】
Steps：
1. Select the toolpath.
2. Click Menu【ToolPath > ToolPath sequence】.

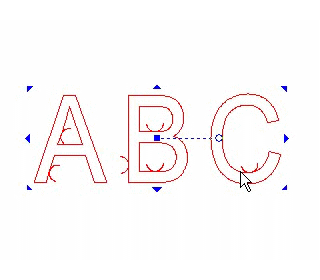

3. Then the toolpath is marked by numbers.
4. Click a sequence number to change the sequence of toolpath.
5.Click the right button, Click Yes to save the new toolpath sequence.
