Mesh Wrap

STEPS:

1、Draw a surface, click the Menu【Surface >Surface Flatten】.It generates a flattened two-dimensional plane.

2、Choose the Mesh picture, drag it into the boundary of the flattened plane.

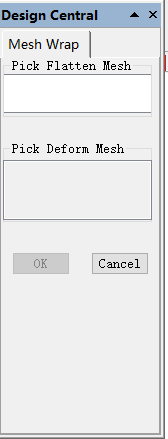

3、Select the fattened plane and the mesh pictures. Click Menu【Surface >Mesh Wrap】. In the Design Central, click the column”Pick Flatten Mesh” to click and choose the Flattened plane.  Then click the column” Pick Deform Mesh” ，

  Click and choose the mesh pictures and then click the “ok” button. At this time the mesh pictures will be  showed on the surface.

 Please note: the sizes of the mesh pictures couldn’t exceed boundary of the flattened plane, otherwise execution of the “Mesh Wrap” would be abnormal.

A CASE OF APPLICATION 1:

A CASE OF APPLICATION 2:
