Image Stripping

       To display an image in stripe form, and the stripped image can be used in engraving.


      Menu【File >Image Processing > Image stripping】                      Standard  Bar




       1. Select the image.

       2.Click Menu【File >Image Processing > Image stripping】.

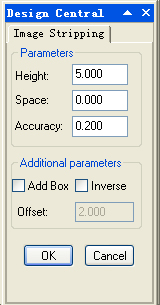

       3. Set the parameters.

       4. Click OK button.


Height: the height of every strip of the image.

Space: the space between every two stripes.

Accuracy: the higher the value is, the more accurate the image is.


        Additional parameters:

Add box: A box is added around the processed image if this function is started.

Inverse: The inversed image will be processed.

Offset: is the distance between the sides of the box and the edge of the image.
