      Standard surface includes sphere, cylinder, cone, torus and so on .it can easily generate standard surface. Key in relevant parameter, standard surface is generated.


1.Sphere




Steps:

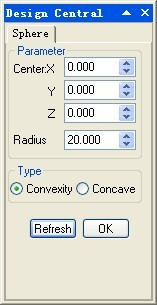

     1. Click Menu【Surface >Primitive > Sphere】.

     2. Select the type (Convexity or Concave)

     3. Set the center and radius of the Sphere.

     4.Click the OK button to finish operation.

Convexity:the top half of sphere.

Concave:the bottom half of sphere.


2. Cylinder



Steps:

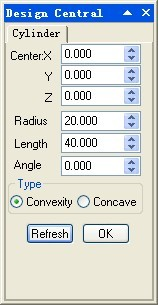

      1. Click Menu【Surface > Primitive > Cylinder】.

      2. Select the type (Convexity or Concave).

      3. Set the Center, Radius, Length and Angle of the Cylinder.

      4. Click the OK button to finish operation.




3. Cone



Steps:

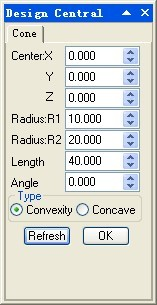

      1. Click Menu【Surface >Primitive > Cone】.

      2. Select the type (Convexity or Concave)

      3. Set the Center, Radius1, Radius2, Length and Angle of the Cone.

      4. Click the OK button to finish operation.




4. Torus




Steps:

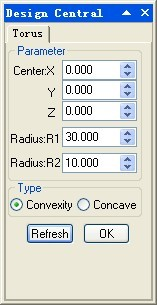

      1. Click Menu【Surface >Primitive > Torus】.

     2. Select the type (Convexity or Concave)

      3. Set the Center, Radius1 and Radius2 of the Torus.

      4. Click the OK button to finish operation.




5. Ellipsoid



Steps:

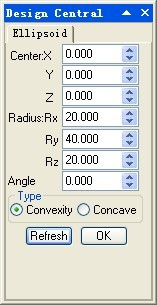

      1. Click Menu【Surface >Primitive > Ellipsoid】.

      2. Select the type (Convexity or Concave)

      3. Set the Center, Radius and Angle of the Ellipsoid.

      4. Click the OK button to finish operation.




6.Plane



       Steps:

      1. Click Menu【Surface >Primitive > Plane】.

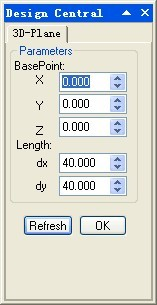

      2. Set the BasePoint, Length of the 3D-Plane.

      3. Click the OK button to finish operation.






7. Pyramid




Steps:

1. ClickMenu【Surface> Primitive >Pyramid】.

2. Select the type (Convexity or Concave)

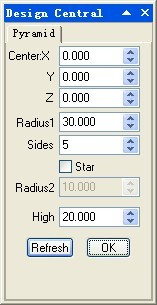

3. Set the Center, Radius, Sides and Hige of the Pyramid.

4. Click the OK button to finish operation.
