Insert Control Point
Menu【Surface>Insert Control Point】
STEPS:
1、Draw a surface.
2、Select this surface. Choose the menu:【Surface>Insert Control Point】.

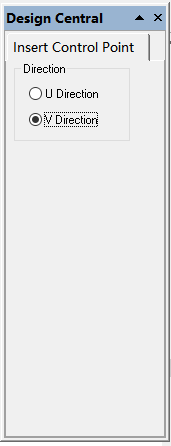

3、You can choose the U direction or the V direction in the Design Central.
4、Press the right button of the mouse to finish the operation.
