Arc and Line Fit

Arc Fit

       You can change a Bezier curve, which is composed of small lengths, into a curve, which is composed of arcs. In this way, machining efficiency is greatly improved, because arcs take much less time to calculate during tool path output than Bezier.


       Command:

       Menu【Transform > Arc Fit】





      Steps:

       1. Select an object.

       2. Click Menu【Transform > Arc Fit】.

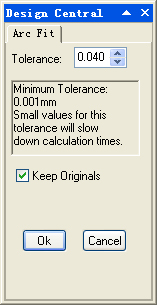

       3. Set the parameters, and click OK button.

       Parameters

      Tolerance: is the precision of arc fit.

      Keep Originals: to preserve the original object.


Line Fit

      You can change a Bezier curve, which is composed of arc or curve, into a curve, which is composed of lines. That can be used for different needs.


        Command:

        Menu【Transform > Line Fit】




   Steps:

   1. Select an object.

   2. Click Menu【Transform > Line Fit】.

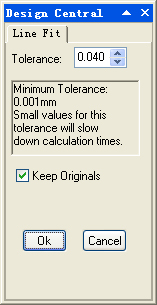

   3. Set the parameters.

   4. Click OK button.



   Tolerance: the precision of line fit.

   Keep Originals: to preserve the original object
