Mesh Boolean

      Command:

      Menu:【Mesh>Mesh Boolean]

Steps:

1、Select several graphics.

2、Select menu: 【Mesh>Mesh Boolean】

3、Set the parameter in the dialog box:

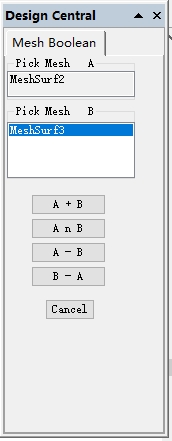

 Click “pick mesh A” in the Design Central and pick one part of the graphic, then click “pick mesh B” in the Design Central and pick  the other part of the graphic.

4、Click”A+B” button, show the combination of the two graphics.

     Click“AnB”button, show the overlapping parts of the two graphics.

     Click“A-B”button, show the difference between two overlapping graphics.

     Click“B-A”,show the difference between two overlapping graphics.
