Pullback

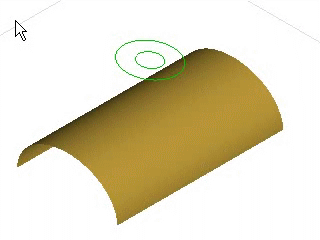

Pullback is similar to curve project to surface, but in pullback, curve projects along the normal direction of surface.
Command:
Menu【Draw >Pullback】
Steps:
1. Select curve and surface.
2. Click Menu【Draw >Pullback】.
