Chamfer Machining
to use the conic tool for Deburring an edge.
Usage
1. Select the object.
2. select the menu 【Toolpath > Chamfer Machinning】.
3. Select The tool，set the parameters .
4. Click “OK” ，create the toolpath.。

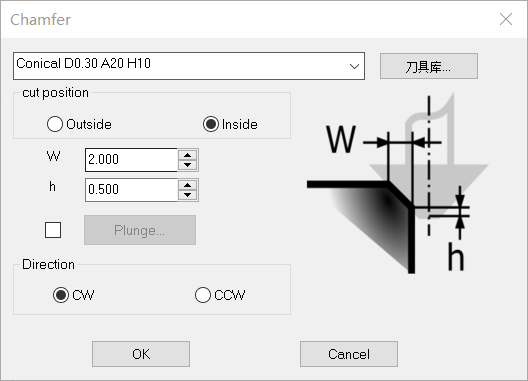

parameters:
- Directions: Select CW (clockwise) or CCW (counter-clockwise).
- W: The dimension of your edge.
- h: The offset from the bottom of the tool. It’s a safety feature because if the tip gets above the edge it won’t cut anymore.
