Cylindrical Wrap:

      Ucancam can Wrap XYZ toolpath to the cylinder so that create the rotary axis toolpath( XYZA / XYZB) on cylinder. This is simple and fast method to create the rotary axis toolpath on the cylinder.

     For example, to create the drill toolpath on the cylinder(dia=20, len=80).

    1.Expand the cylinder to a rectangle, the size of rect, dx = =3.1415926*20=62.832.

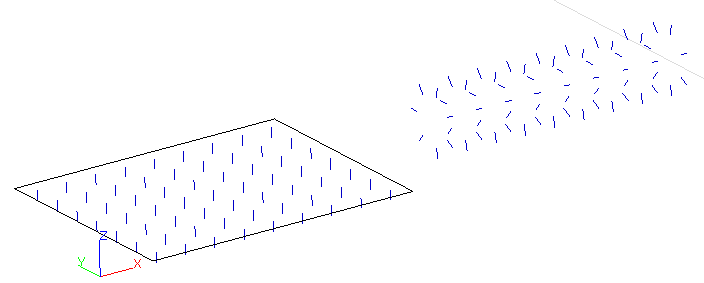

    2.create the drill toolpath on rect.

    3.select the drill toolpath, and click menu《Cylindrical Wrap》,in Dialog, set the diameter as: 20.

    4.press “OK”, create the drill path on Cylinder。
