Prism Machining

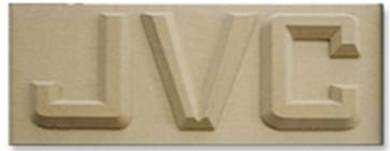

      By prism machining, it becomes easier for you to make characters with prism effect, and sign mark.



      MenuToolPath >Prism machining】        Toolpath  Bar



1. Select the object

2. Click Menu【ToolPath > Prism machining】.

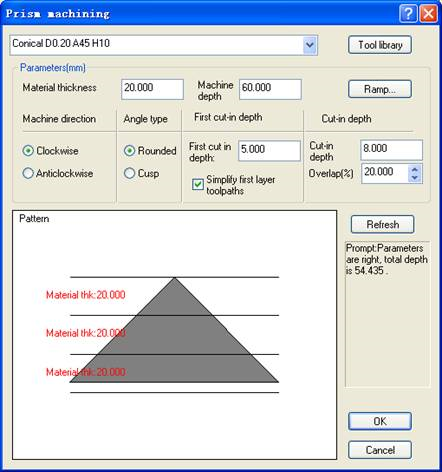

      3. Set the parameters, Click OK button.


1)Tool: This Prism machining effect is only gotten by using the conical tool. Thus, only conical tools are provided in the tool library.

2)Parameters: You can set the material thickness and machining depth in this section.

If the machining depth less than prompt, the effect in Figure

3)Machine direction: is the direction of the toolpath, including clockwise and anti-clockwise. When choosing cutting direction, the material should be taken into consideration so that the surface of the material after being machined is smooth. Clockwise machining is fit for cutting materials of high density, such as Acryl (organic glass), brass, etc; anti-clockwise machining is fit for cutting materials of low density such as PVC board, two-color board, etc.

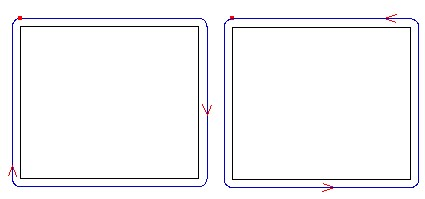

           clockwise                            anti-clockwise

4)Angle type: includes rounded and cusp angles.

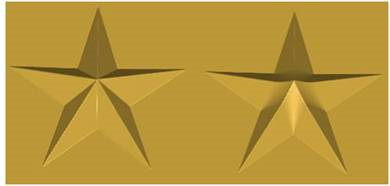

                 Cusp                         rounded

5)First cut in depth: The first layer of the milling depth, As milling capacity, so the depth should not be too deep, can not exceed the cutter  height.

Simply first layer toolpaths: Cancel the external path of the first layer.

                 Simplify before                    Simplify after

6)Cut in depth:After the first layer milling, per layer depth in remaining processing(Can be used instead of overlap).

7)Preview window: Prism section created is previewed in this window.

Refresh: if the Prism section created did not show in preview window, click refresh button.

Prompt: It automatically prompts you whether you have chosen a proper tool, and lets you know if the cutting depth is right or not.
