Mesh Z Slice

---

      Command:

      Menu:【Mesh>Mesh Z Slice】

---



STEPS:

1、 Select the graphic to be split.

2、 Choose the menu【Mesh>Mesh Z Slice】

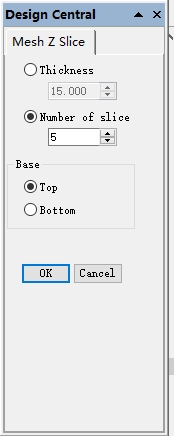

3、 Set the parameter in the dialog box:

Parameter Paraphrase:

Base” top”: segment isometrically from top to bottom along the Z-axis.

Base”bottom”: segment isometrically from bottom to top along the Z-axis.

Thickness: segment by the thickness of the layers

Number of slice: segment by the number of the layers.

4、 Click” ok” button to finish the setting.
