Bounding Box

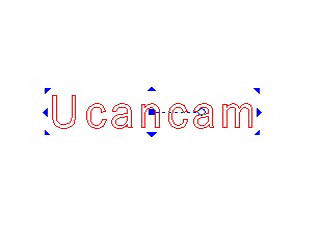

      Adding a bounding box to an object is useful for machining. Sizes of a bounding box are changed by parameter settings according to your needs.


     Command:

    MenuDraw >Bounding Box                    Curve Bar




      Steps

     1 Select an object.

     2 Click Menu【Draw >Bounding Box】.

     3 Set the values.

     4 Click OK to finish the operation.

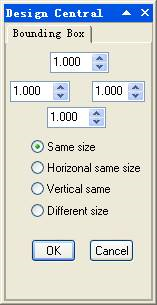

Parameters:

Same size: The modifications of the bounding box in four directions are the same.

Horizontal same: The modifications of the bounding box in the horizontal direction are the same.

Vertical same: The modifications of the bounding box in the vertical direction are the same.

Different size: The modifications of the bounding box in four directions are different.
