To Mesh

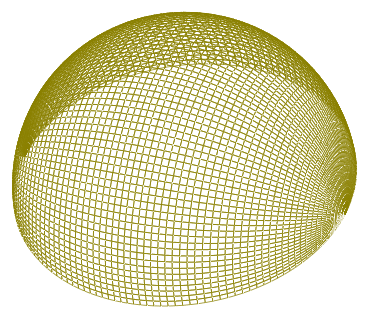

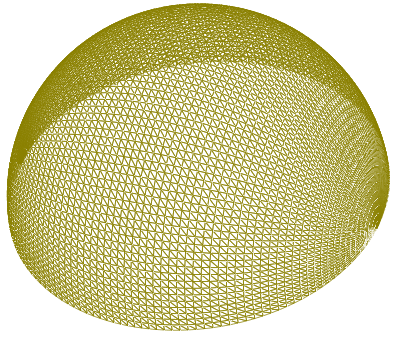

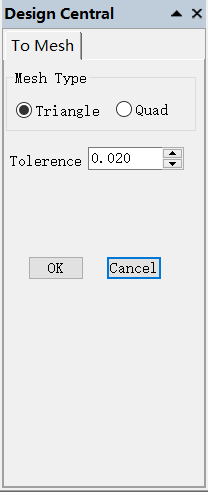

Surface can be converted to ：Triangle mesh or quad mesh，and you can set the “”Tolerance“ to control 来the density of facet. the smaller of tolerance to create the more facet.
