Purfle Relief


       Command:

       Menu【Relief > Purfle Relief】


       Steps

       1.Select an closed vectors or text.

       2.Click Menu【Relief > Purfle Relief】.

       3.Pick the purfle Curve.

       4. Set the parameters.

       5.Click OK button.

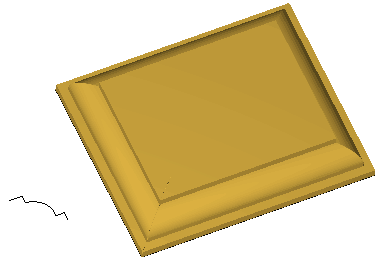

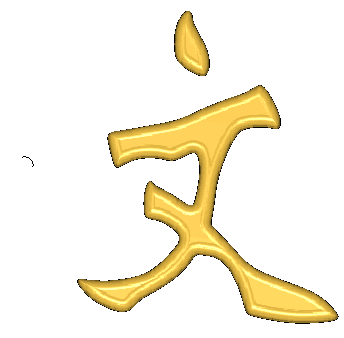

        This tools allow you to create reliefs by applying profiles that can range anywhere from a simple rounded edge all the way to an intricate profile that changes the whole relief.

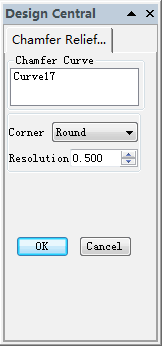

     Dialog Parameter:

     Corner\Resolution: are same with the standard relief.

     It works by first adding a height to a relief that is equal to the height of the profile, and then removing material around the perimeter of the relief that is the shape of the profile.
