Cut in(out)

     To ensure completeness of contours and separation of parts after cutting, an extended line known as “cut out ” is normally cut at end of contours.

 Line or Arc can be added as Cut in(out)


     Command:

     Menu【Nesting > Cut in(out)】








     Steps:

    1. Select the drawing.

    2. Click Menu【Nesting > Cut in(out)】.

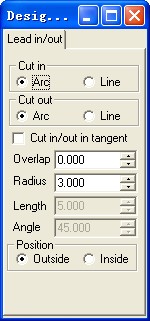

    3. Set the parameters.

    4. Moving the mouse to the position of cutting in/out , click left button, the “cut in(out)” is added

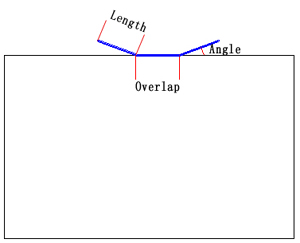

                                 Line

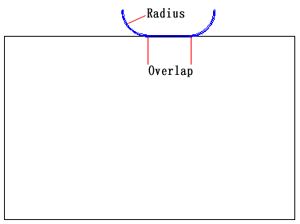

                               Arc

Notes:

     1. with intelligent snap function, you can snap the feature point. Add the cut in\out in the feature point.

     2 the angle of cut in\ out is ranged from 0—90 degree
