Straight Texture


Bamboo trip                            Straight wave


MenuWave Board  > Straight Texture

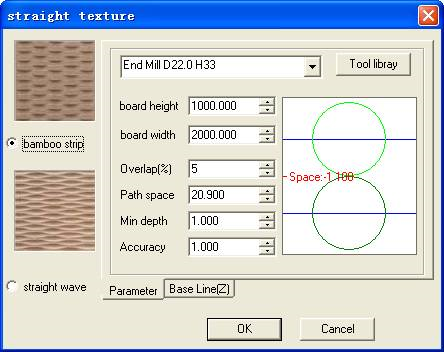

 1  Click Menu【Wave Board > Straight Texture】.

       2  Set the parameters, click OK button.


Board height: the height of the board to be processed

Board width: the width of the board to be processed

Overlap: the proportion of the overlapped Toolpath  to
the last one

Path space: the space between each Toolpath

Min depth: the min depth the tool goes into the

Accuracy: the accuracy of the texture. The accuracy is better when the setting is lower, and the time needed for calculating is longer.

Notes: Overlap and the path space are the same. So you need to just set one of them when creating the Toolpath .

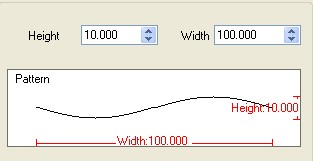

 Baseline setting

Height: the height of the z axis curve that is the depth of the tool going into the material.

Height =min depth + wave height

Width: the width of z axis curve
