Project Toolpath

Project the toolpath on the surface.


MenuToolpath > Surface Finish >  Project


1 Finish mill the ellipsoid.

2 Make Area clearance for the sign to generate a toolpath.

3 Select the toolpath generated and the ellipsoid, then for align on center.

4 ClickMenuToolpath > Surface Finish > Project.

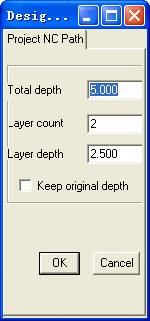

     5 Set the parameters, click OK button.


Total depth: Depth of projected toolpath into the surface.

Layer count: the number of layer, the machining is done layer by layer on the material.

Layer depth: the depth pre layer.

Keep original depth: keep original depth, the depth generated by area clearance(or other machining) will be kept, thus Total depth will deepen the toolpath’s depth .
