Image Relief Convert the image to relief.
Command:
Menu【Relief > Image Relief】

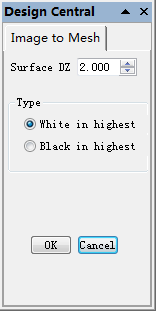

Dialog：
Parameter:
Surface DZ：the thickness of surface.
Type:
White in highest: white is corresponding to the higest point of surface.
Black in highest: black is corresponding to the higest point of surface.
