Clone along a curve

To clone the selected object along a curve.

Command:

Menu【Modify >Clone along a Curve】                   Modification Bar

Steps：

1. Select the object.

2. Menu【Modify > Clone along a Curve】

3. Pick the curve

4. Set the Parameters.

5. Click OK button.

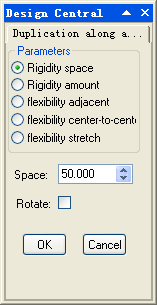

Parameters

      Rigidity space array: The object is duplicated along the curve with the same distance between each two objects.

      Rigidity amount array: The amount is the total amount of the objects duplicated to the end of the curve with the same distance between each two objects.

Flexibility adjacent array: Check “Auto duplication” and then the object is duplicated along the curve with their centers on the line. If you do not check “Auto duplication”, then the object is duplicated according to the actual amount you set in the Amount list. The object is duplicated with no space between each two of them.

      Flexibility center-to-center array: The object is duplicated along the curve with the same distance between the centers of each
two objects.

      Flexibility stretch array: The object is duplicated automatically with objects all along the curve.

      Space: the distance between each two duplicated objects.
